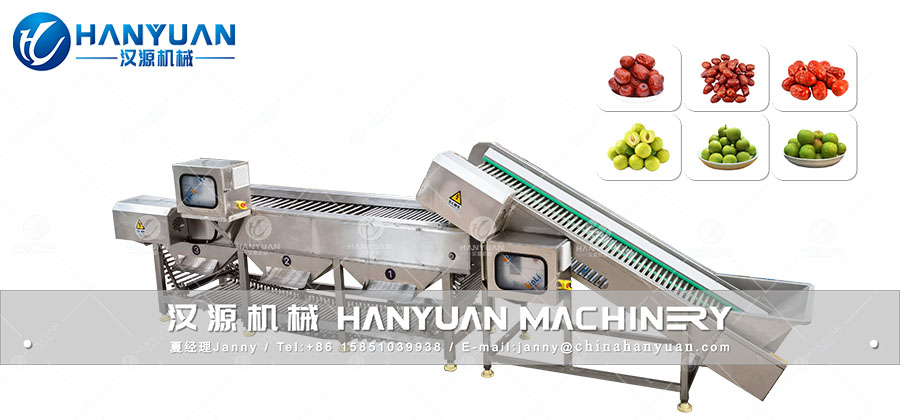

Automatic Fruit Grading Machine is a kind of closed and light weight vibrating sieve equipment,Automatic Fruit Grading Machine uses two vibration motors as the vibration source, which make the material jump in straight line on the screen surface, material evenly go into the feed port of linear vibrating screen from the feeding machine, generating multiple materials through the multi-layer rectangular screening mesh, and be discharged from each outlet. Main functions of linear vibrating screen are grading, filtering and removing impurity.
 | | | |
Save power Easy operate speed adjust | SUS material Can use201*304 stainless steel | Multufunction Grade size is adjustable | Thickness frame High quality unti-rust |
This Automatic Fruit Grading Machine is mainly composed by 5 parts: frame, reducer driven by variable frequency motor, discharging system, electric control system and grading roller system. (The outer diameter of the roller is determined by the max grading range. The output requirement determines the length of roller and the length of every size range, that is, the appearance of the equipment.) This Automatic Fruit Grading Machine uses the distance between the fixed and movable rollers that are arranged at intervals to grade materials as to size. Quantity of size grades is preset and it can decrease but not increase.
Model No. | 3M-9TRACK | 3M-11TRACK | 3M-15TRACK | 3M-20TRACK | |
Power | 0.75KW | 0.75KW | 1.1KW | 1.5KW | |
Voltage | 220/380V,50HZ | ||||
Capacity | 1-1.5T/H | 1.5-2T/H | 2-3T/H | 3-4T/H | |
Size of grader | 0.5-4.5CM | ||||
Number of grader | 3-8 LEVEL | ||||
Size | 320*70*100CM | 320*90*100CM | 320*120*100CM | 320*200*100cm | |
Weight | 160kg | 180kg | 390kg | 500kg | |
Material | 201 Stainless Steel/304 Stainless Steel | ||||
