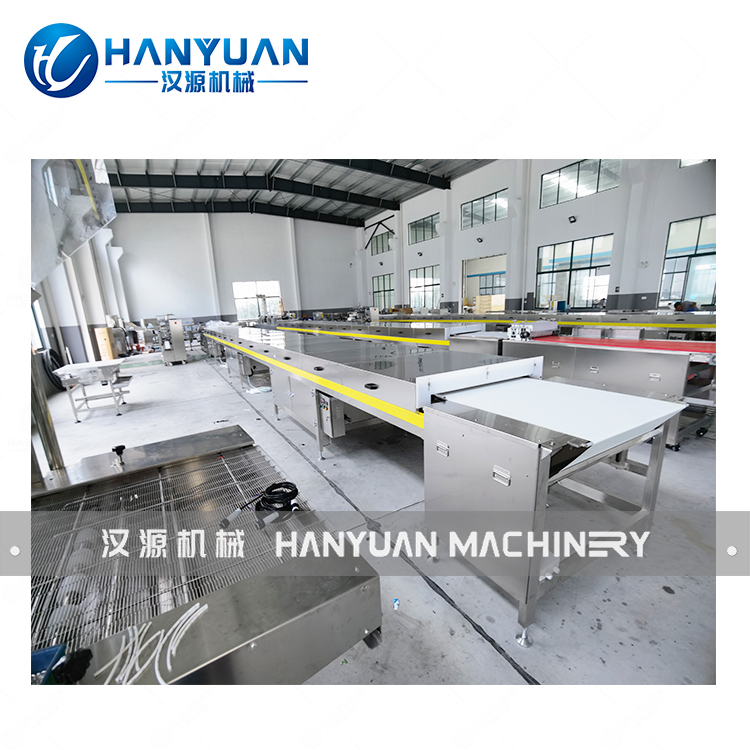

Our HY-TC900 Chocolate Enrobing Line,HY-TC900 Chocolate Coating Machine with Cooling Tunnel is a special equipment which is used for producing assorted chocolates. It can coat chocolates, both can coat chocolate think liquid on the surface of many kinds of foods. Such as candy, cake and biscuit ects, chocolate products have many various flavors.
The HY-TC900 Chocolate Enrobing Line,HY-TC900 Chocolate Coating Machine with Cooling Tunnel is to coat chocolate on various food such as biscuit,wafers,egg rolls cake pie and snacks etc. Cooling tunnel is available. There are following special devices for optional also:
1.magazine feed: to simplify the feeding of biscuits or wafers etc to the enrobing wire mesh.
2. granular sprinkler: to sprinkler sesame or peanut granule on the enrobing products.
3. decorator: to decorate zigzags or stripes of different color on the surface of enrobing products.
|
|
|
|
PU belt, strong carbon steel or appointed material for the bearing parts. | coating chocolate on bottom side of production and before go to cooling tunnel | feeding of cereal bars, biscuits or wafers etc to the enrobing wire mesh | All the parts that touched with chocolate will use food grade SS304 |
Model Project | 400 | 600 | 900 | 1200 |
Wiremesh and belt width(mm) | 400 | 600 | 900 | 1200 |
Wiremesh and belt Speed(m/min) | 1~6 | 1~6 | 1~6 | 1~6 |
Refrigeration unit(set) | 2 | 3 | 4 | 5 |
Cooling tunnel length(m) | 10 | 14 | 18 | 22 |
Cooling tunnel temperature(℃) | 2~10 | 2~10 | 2~10 | 2~10 |
Total power(kw) | 16 | 16.5 | 22.87 | 28.5 |
Weight(kg) | 1800 | 2300 | 3200 | 4050 |
Outside dimensions(mm) | 13160×700×1500 | 17500×950×1800 | 21500×1200× 1800 | 25500×1450× 1800 |
