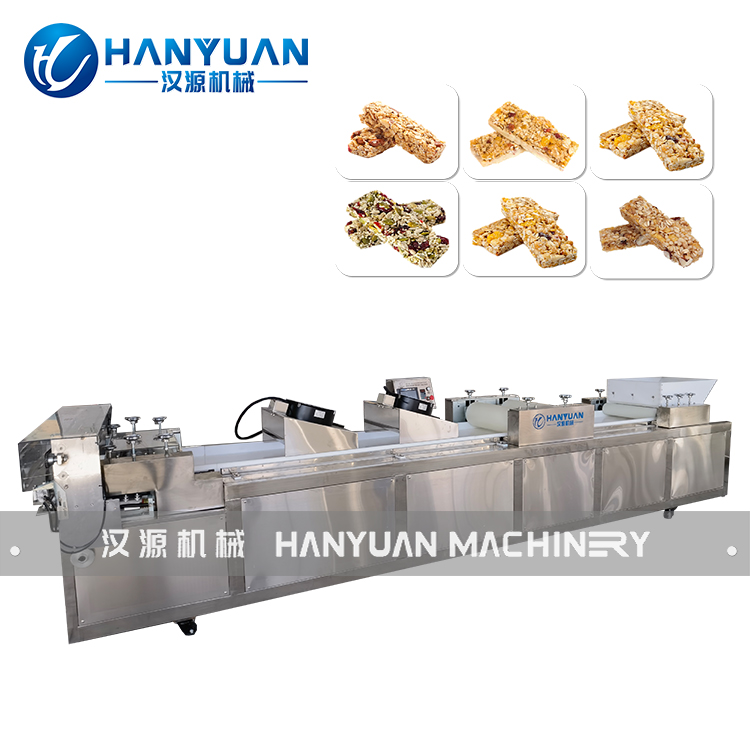

The Muesli Bar Cutting Machine is automatic PLC control,which consists of material feeding, rolling, cooling, cutting, conveyor so as to make a complete cereal bar production line. TheMuesli Bar Cutting Machine can make cereal bars,granola bars, muesli bars, nuts bar, seeds bar, energy bar, puffed rice bar etc.
1.The hopper is a scraper, auger and feeding roller structure, separate motor, frequency conversion speed regulation, uniform feeding, without manual intervention.
2. The conveying and cutting power of the main machine are double servo motors, stable cutting, accurate size.
3. The machine speed, frequency and cut-off size can be adjust by the PLC control panel.
Model | Muesli Bar Cutting Machine |
Voltage | 5KW 380V/50HZ three-phase |
Dimension | 5200*820*1280mm (host) 3000*780*750mm (conveying) |
Weight | 1500KG |
Capacity | 300-500KG/H |
Structure | frame conveying, unloading device, leveling device, cooling device, slitting, cross-cutting device, conveying device and electrical control components |
Material | carbon steel spray paint, stainless steel shield, food contact parts are stainless steel or food grade plastic |
Application | Energy bar, Peanut candy, Shaqima,rice candy, sesame candy, Muesli Bar, Cereal Protein, Granola Bar, Satsuma,Rice candy, Rice bar,Frozen rice candy,Sesame candy bar, Peanut brittle(peanut candy bar),Sunflower seeds, candy bar,Coarse grains,Cereal bar and other molding and cutting. |
 |  |  |  |
| Muesli Bar Sugar Melting Machine | Muesli Bar Sugar Cooking Machine | Muesli Bar Mixing Machine | Muesli Bar Packing Machine |
