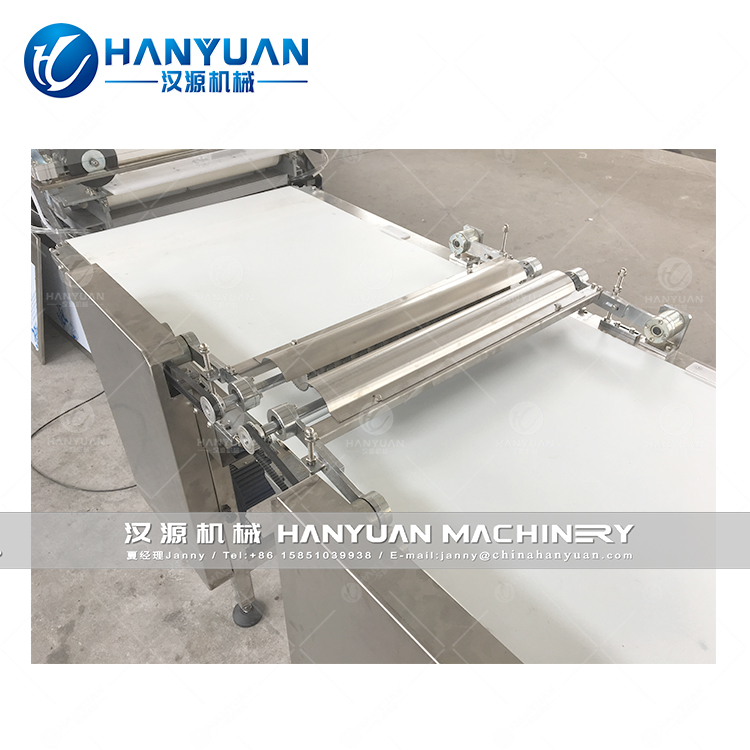

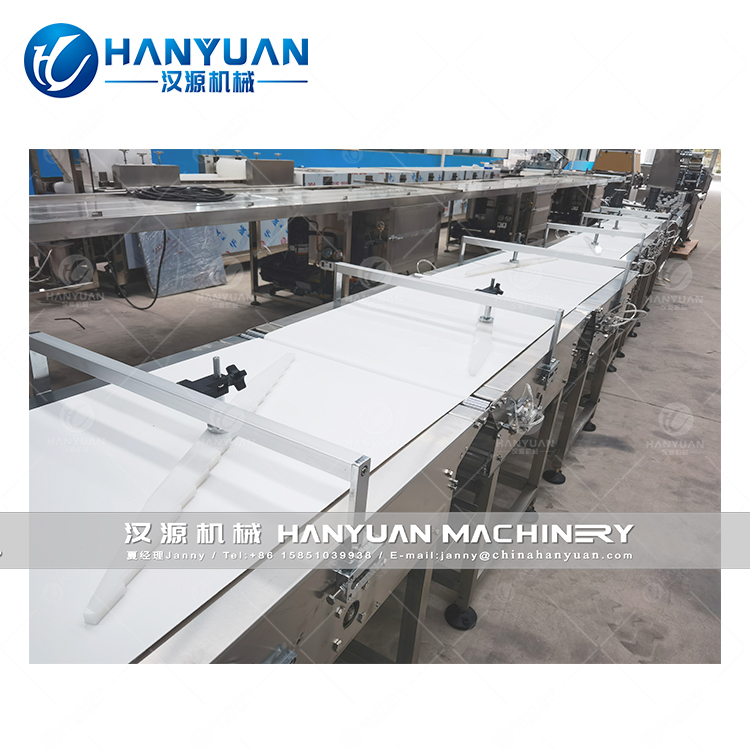

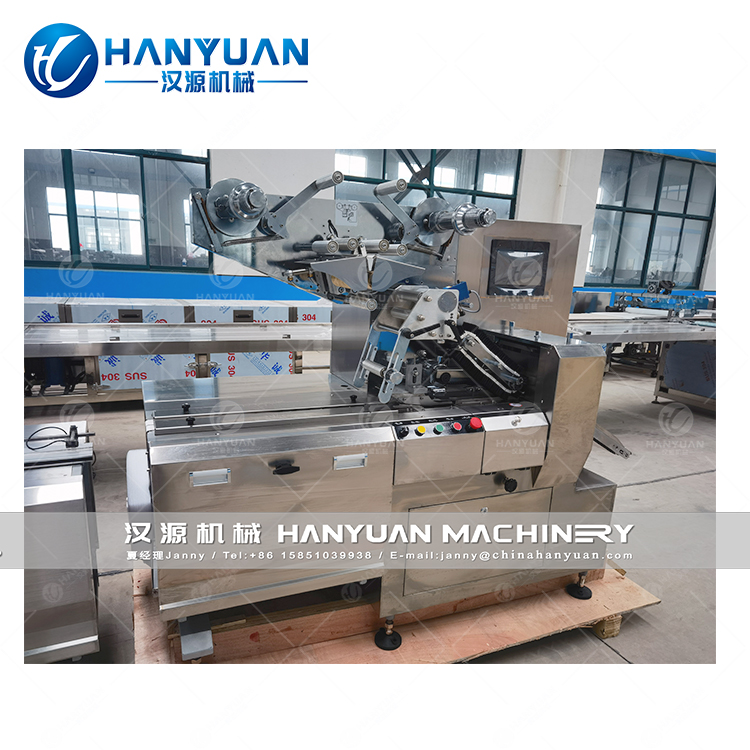

The Automatic Double Layer Protein Bar Packing Equipment can sort, arrange, automatically distribute, and load the packaging materials into the tray, and order the products into the multi-channel automatic sorting device for positioning and packaging. To achieve the effect of continuous production and beautiful packaging.
1.Automatic Double Layer Protein Bar Packing Equipment with nine servo motors, touch screen control.
2. Automatic feeding for the complete Automatic Double Layer Protein Bar Packing Equipment.
3. Automatic belt speed of this Automatic Double Layer Protein Bar Packing Equipment adjustment through frequency converter, every conveyor belt is individual.
4. Conveyor belt automatic deviation device through cylinder and photocell.
Model | Automatic Double Layer Protein Bar Packing Equipment |
Bag shape | back sealing/three-seal/four-side seal |
Horizontal sealing | straight line/netted line |
Vertical sealing | netted line |
Packing speed | 100-350bags/min |
Roll thickness | 5-10C |
Roll diameter /Roll width | max.320mm max.250mm |
Bag width | 30-110mm |
Bag length | 90-220mm/150-330mm |
Powder specification | 220V,50/60Hz(support customization) |
 |  |  |  |
It can be seamlessly connected to the production line and automatically convey materials. | Automatically distribute materials and transport them to the packaging direction. | Automatic detection of materials to speed up packaging, the fastest packaging speed can reach 350 bags per minute. | Automatically pack materials to increase the aesthetic convenience of the product |
